Description

SHS-1321

RIM Type Door Lock

User-friendly Accessibility
Powerful Security
Enhanced Security & Convenience

Different Authentications Modes to Unlock

PIN Code
RFID Card

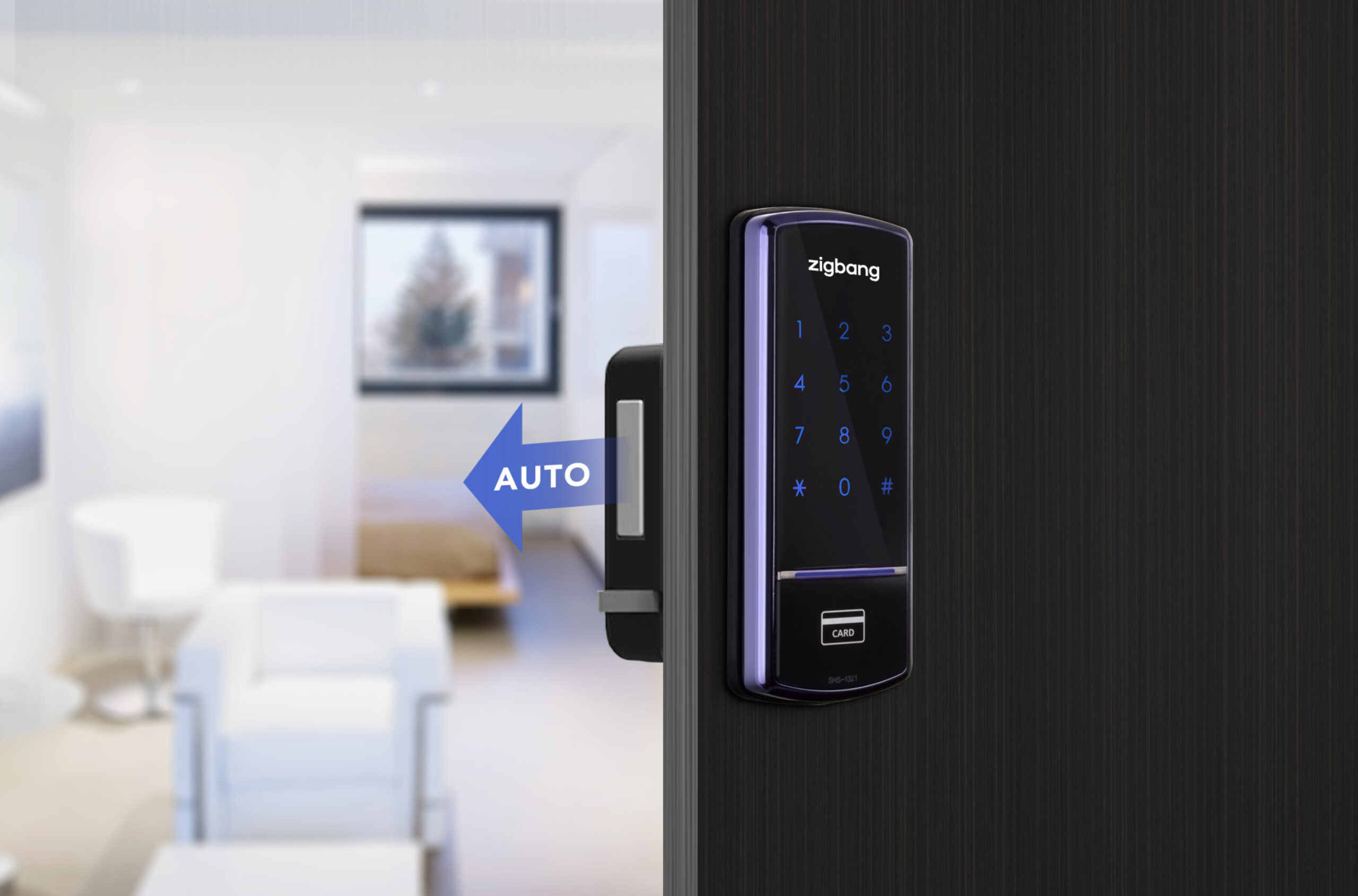

Automatic Locking

Door lock will be locked automatically when your door is closed.

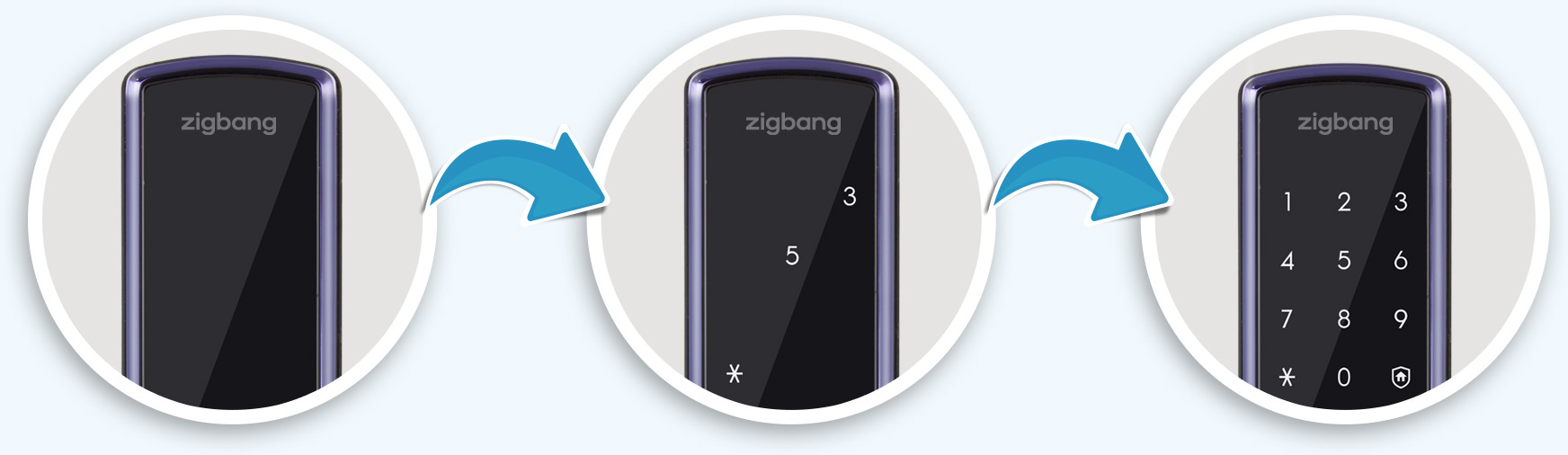

RANDOM SECURITY CODE

Resident security is heightened by preventing password exposure with the random security code feature.
By pressing randomly selected numbers prior to entering the password, guessing passwords by fingerprint marks is prevented, therefore doubling security.

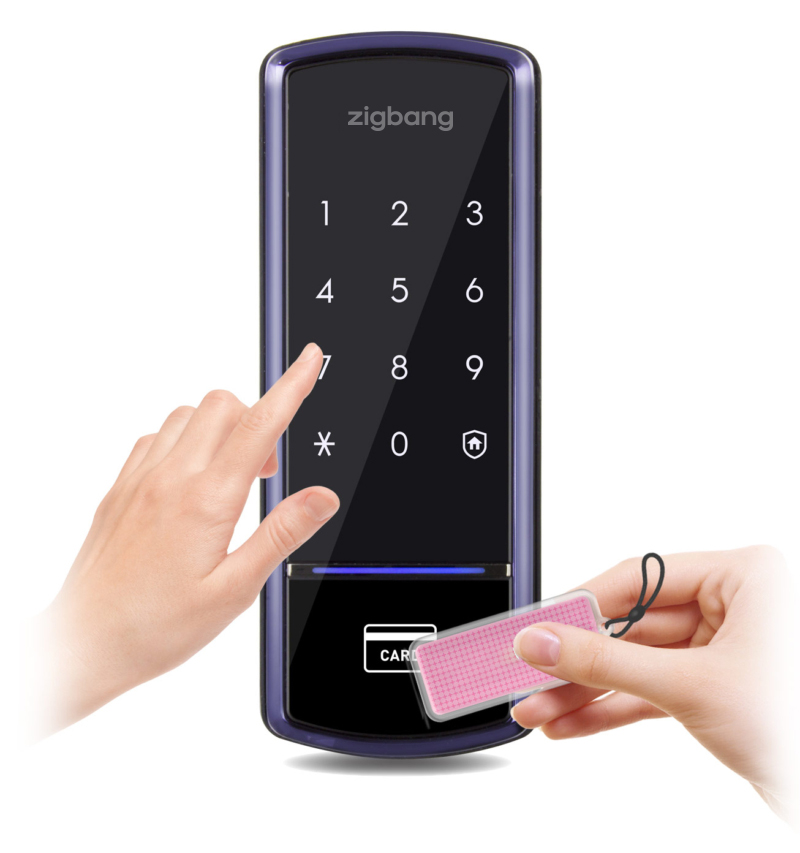

Double Authentication Mode

With the Double Authentication Mode setting, home security is strengthened and allows for greater security access. Door opening access requires two authentication verifications; both password and access card system input therefore it is safer and more secure.

※ It is imperative that while the Double Authentication Mode is on, you do not forget the password.

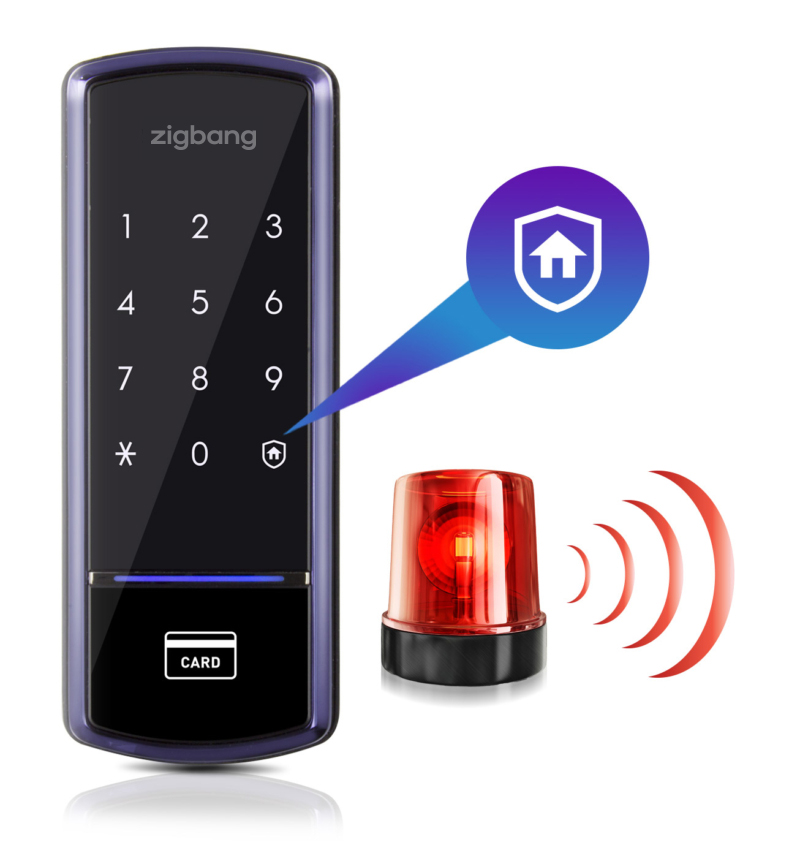

Intruder prevention feature with one touch

With a simple One Touch of ‘Home Shape’ button, users could provide against any external intrusion while outings. During the feature activation, alarm chime breaks out if an intruder entered from windows, verandas etc. other than door(with installed doorlock) try to operate the doorlock inside the house.

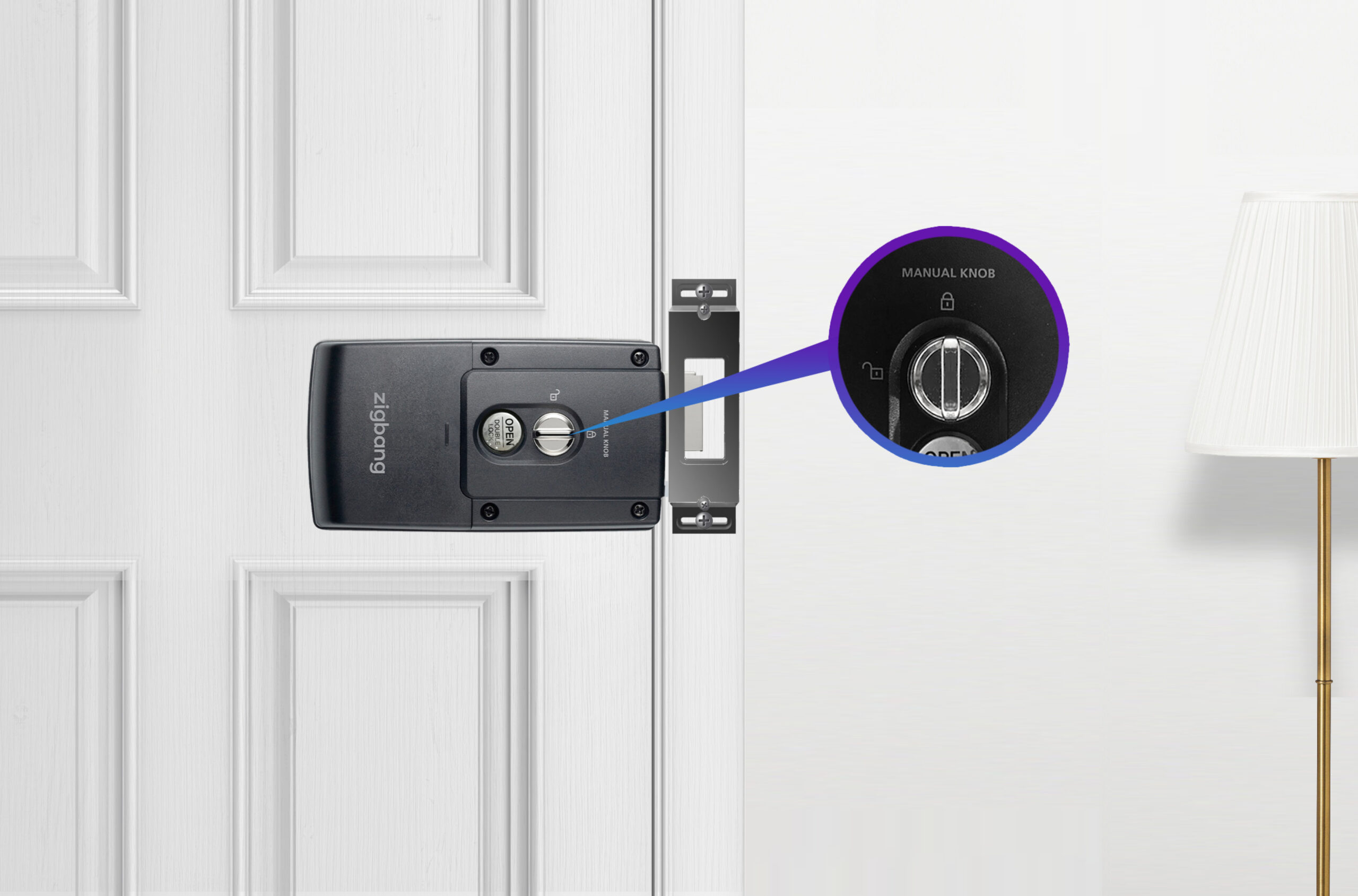

Manual lock and open

Adjust a manual knob on the indoor unit to open and lock the door.

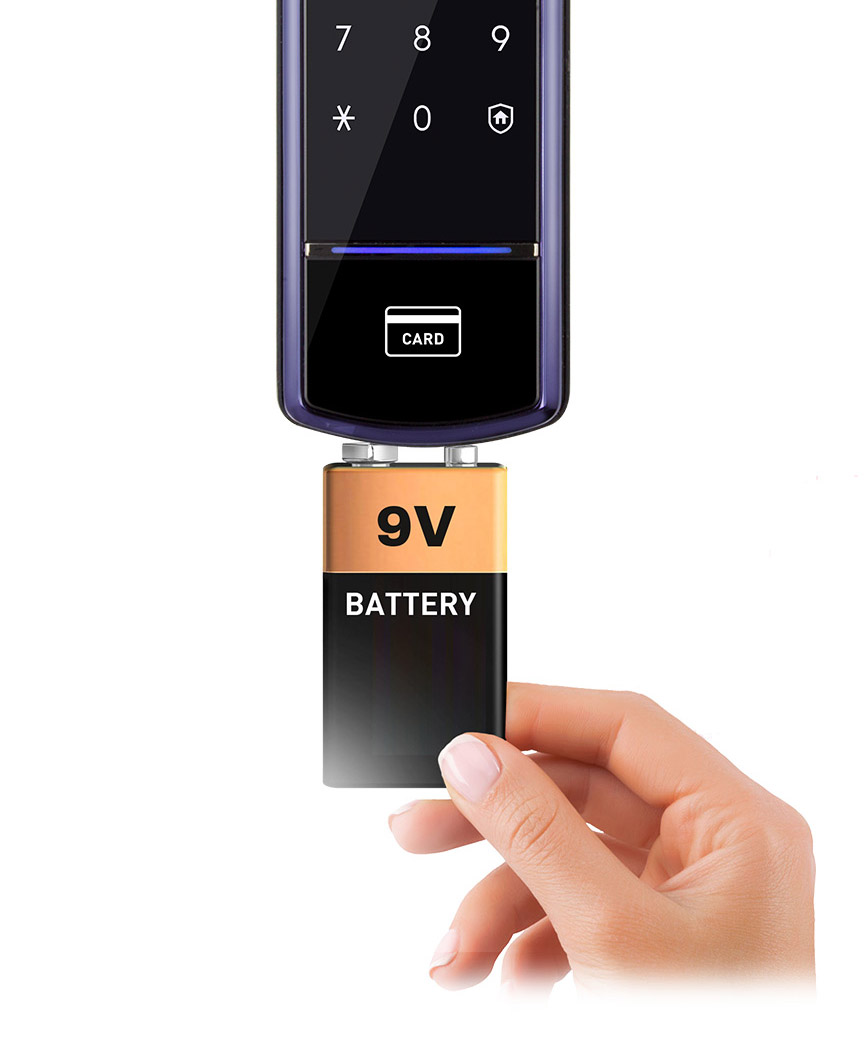

Emergency
Power Supply Feature

In the event that batteries run out, the door can be opened from the outside by using a 9V battery.

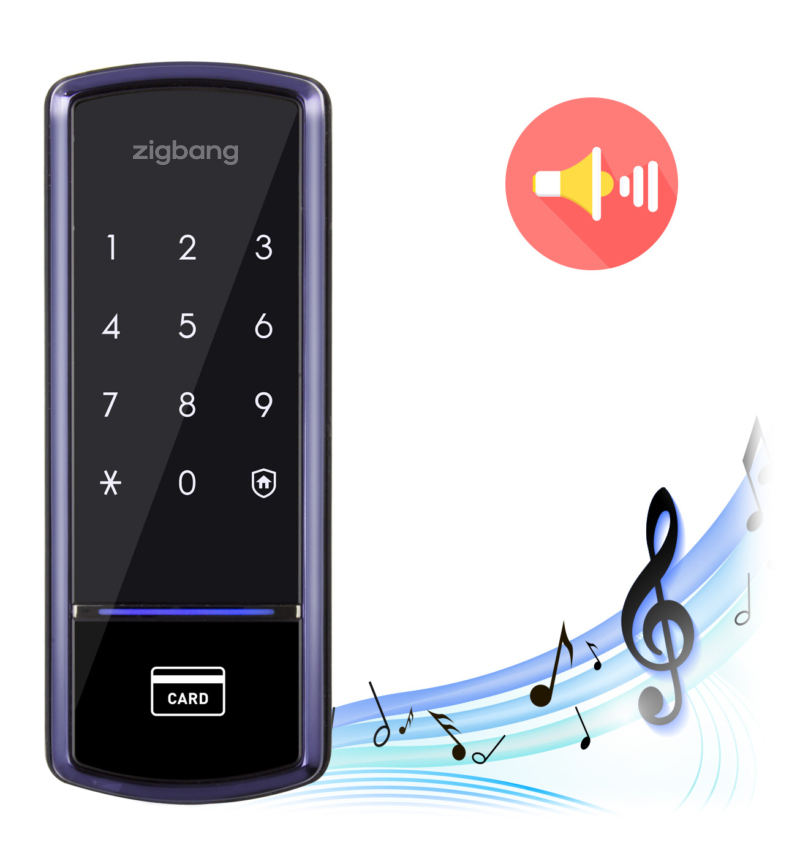

Silent Mode

Silent mode doesn’t make melody sound.
Don’t worry about waking up your baby.

Low Battery Indicator

The low battery indicator provides you ample time and convenience to change the batteries; ensuring that your lock never dies on you.

Available Colors

  Black

Max User Memory

1 User (PIN) 20 Cards

Access Mode

PIN/Card

User Friendly Interface

No

Double Verification

PIN + Card

Auto Card Detection

No

Intrusion Prevention

No

Out-body Dimension (W x H x D)mm

69 * 175 * 22

In-body Dimension (W x H x D)mm

181 * 92 * 48

Applicable Door Thickness (mm)

40 – 50mm

Door to Gate Allowance (mm)

180mm

Power

DC 6V (AA Alkaline batteries) x 4

Battery Life

Approximately 10 months (Average 10 times per day)
